For better or worse, the property that my wife and I fell in love with was over a mile back down a private road, and our few other neighbours have summer-only cabins. There are no services of any kind that come down our road - no phone, no cable, no fiber optics, and of course, no power lines. The closest neighbor heats with wood, and handles cooking and a small amount of power generation with propane.

I looked briefly into bringing power lines back to our site, but an off-grid solution became the obvious choice when I realized that the price would greatly exceed $100,000 just to put in the power poles. I already had quite an interest in sustainable energy and solar power, so this provided just the impetus that I needed to pursue an off-grid home.

I'll list the vital statistics of our off-grid energy system first, and then say a bit about how the system has worked so far, as well as the updates that have already been implemented.

Our off-grid electricity generating system:


Photovoltaic panels: 12 Solarworld 235 watt panels (2820W in total)
Additional panels (fall of 2015): 12 Jinko 250 watt panels (3000W total)
Batteries: 8 Deka deep cycle solar batteries, lead acid AGM 12V 265 Ah (a nominal 25 kWh storage)
Backup generator: Generac Ecogen, 6 kW
Electronics:

  • Schneider MPPT 80 600 Charge Controller
  • Schneider Conext SW 4048 Inverter/Charger
  • Schneider Combox
  • Schneider Automatic Generator Starter
Off grid living blog
Off-Grid energy system control panel © Craig Anderson

How the pieces fit together

Any electrical grid starts with power generation, and our off-grid generation system is no different. The majority of the time, all of our electricity needs are supplied by solar panels. However, there are times when the panels can't produce enough power (at night and on cloudy days) to meet demand.

Generally the batteries serve the role of storing enough energy to get us through a couple of days without much sun, but when the battery charge gets too low, the backup propane generator turns on and provides power to the house via an alternator  that both powers the house and recharges the batteries.

The electronics provide for energy transformations and communications. The charge controller takes high voltage power coming from the solar panels and steps it down so that just the right amount and voltage (a bit over 48V DC) of power is passed on to the other systems.

Most of this power is dumped straight into the batteries, which chemically store that electricity for later use. When power is needed for loads in the house, that 48V power coming from the batteries and charge controller is drawn into the inverter, which converts the power into the normal household power found in any home, 120V alternating current, which goes out through a standard breaker panel to the house.

The inverter is actually an inverter/charger, so in addition to taking DC power from the batteries and solar panels out to the house, it can also convert AC power from the generator (or for others' setups, the power grid) into DC power to charge the batteries. The automatic generator starter is able to start the generator whenever the battery voltage falls below a certain level, ensuring that the batteries are never discharged too deeply. Finally, the Combox provides an interface for controlling all of the other devices, as well as being able to connect to the internet, which I use to check the system remotely and send regular system status updates by email to myself.

Solar panel orientation for off grid power generation

There is a simple rule of thumb that I learned from our solar installer when we were discussing our system setup, with the best orientation for stationary panels being due south, with an angle equal to one's latitude on Earth. This maximizes the annual output of power from a given solar panel. We are at 45° north, so we ought to set our panels at the same angle to the ground. For our original panels, we were able to get this orientation, due south and at a 45° angle.

Through our first winter, I realized that there are some nuances to an off-grid system in the north country that aren't captured by that rule of thumb. There are two main problems with following this rule. The first is snow. It turns out that panels set at 45° don't shed snow as well as I'd hoped. The snow will clear after a day or so of sunny weather, but while the snow is still there, no power is produced by our off grid panels. Clearing them manually works fine, but we are not always there to do it.

The second problem is that an off-grid home is not in the business of producing the maximum total power over the year, it is about always having enough power available to keep the house running. Our summer power loads are extremely low, as no heating is needed, days are long and so very little artificial lighting is needed, and we spend much of our time outdoors. In the winter, when there is already less sun, our electricity needs are actually much higher.

These two problems have a shared solution, to set solar panels at a much steeper angle. This allows snow to slide off very easily, and squares the panels much better to the low-angled winter sun. Of course it is also possible to get around these problems with such things as seasonally adjustable solar panels, or the significantly more complicated sun tracking systems for solar panels, but the simplicity (and reduced cost) of fixed panels is quite attractive. I would go so far as to say that if one is going to have stationary panels in the northern US or Canada on an off-grid home, that orienting them more for winter power generation is the best path to follow.

Off-grid living blog solar panel array

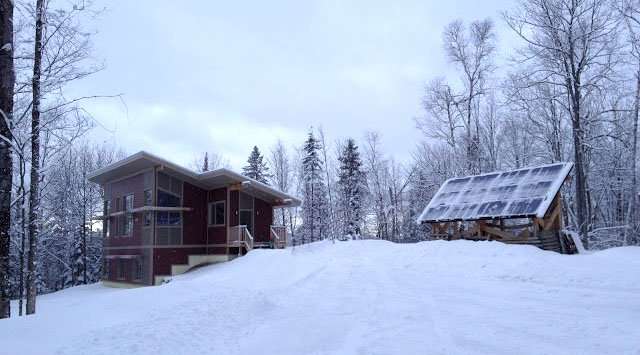

Off Grid solar array includes steeply angled panels for winter © Craig Anderson

In our first two winters, we were overly reliant on our (poorly-functioning) generator through the winter, and so last fall we added an additional solar array set at an angle of 65° from the ground. These greatly reduced the amount of run-time needed from the generator. As you can see from the adjacent photo, the new panels are also oriented a bit to the south-west, This was intentional. There is a better clearing in the trees toward the west, and so the new panels are turned a bit to receive direct sun for a greater portion of the day.

Off-Grid Power generation through the year


Finally, I've attached the power production estimate that my solar installer created for me prior to setting up the system. While a few details changed after these estimates were made (especially the doubling of our PV array), there is a wealth of data here about our local solar resource, expected consumption of power at our home, the efficiencies of the various components of an off-grid power system, and more. For any readers who may actually be considering building an off-grid system, this is the sort of nitty gritty details that you will need to consider. power_production_estimates.pdf

Detailed calculations for this off grid homes power production requirements are below -

to continue reading the off grid blog, find part 4 here, off grid home heating
