Commercial Green Roof Case Study AB Canada

Nestled in the Oldman River valley in Lethbridge Alberta, the green roof on the Helen Schuler Nature Centre (HSNC) has been attracting local and international attention from visitors and living roof enthusiasts since its completion in 2013. On the roof of the building, a 200m2 green roof serves as an outdoor gathering space, living classroom, teems with insect and bird life, and provides a spectacular showcase for landscaping with native species.

Commercial Green Roofs are A Collaborative endeavour:

Green roofs are technically complex building systems, requiring collaboration between architects, structural engineers, mechanical engineers, civil engineers, landscape architects and specialty consultants. A successful green roof is a combination of engineering, architecture and ecology. A successful green roof also thrives with life - plants bloom, insects buzz, birds chirp, and visitors are astounded to find a living oasis on a roof.

Success requires technical excellence across disciplines, but most importantly, it requires a designer with a comprehensive and nuanced understanding of plant communities. While the selection of plants will vary by region, there are many common factors essential to the design, construction and maintenance of a vibrant living green roof.

Green roofs are a committment to ensure success:

A green roof is not something that can be designed, constructed and forgotten - it must be maintained for the lifespan of the building. A lack of commitment in the long term is the biggest contributor to the failure of green roofs. Without that commitment from the client and design team, don’t consider a green roof!

The staff of the HSNC, who were also integral members of the project team, were committed from the outset. They envisioned a green roof as an opportunity to enhance visitor experience, to reduce the ecological footprint of the facility, and to demonstrate native plants as a viable alternative to conventional landscaping.

The secret for a succesful green roof? Build the right team:

Don’t underestimate the expertise necessary to design a successful green roof. Having a certified Green Roof Professional (GRP), or someone with equivalent training and experience on the team is essential. A certified GRP can assist the consultant team to ensure proper coordination of the various green roof components, and assist the general contractor and their subcontractors in respecting and implementing the overall design intent of the green roof system. The GRP can also work with the team to adapt to unforeseen circumstances that might be encountered during construction.

As we did for the HSNC project, I would also recommend working with a local vegetation ecologist and nursery specializing in native plants to assist in the specification of plants suitable for the particular application and climate.

An important part of any roof assembly is that it manages moisture properly. Read here about why roofs need to be ventilated and how to ventilate a roof properly.

Selecting a commercial green roof system:

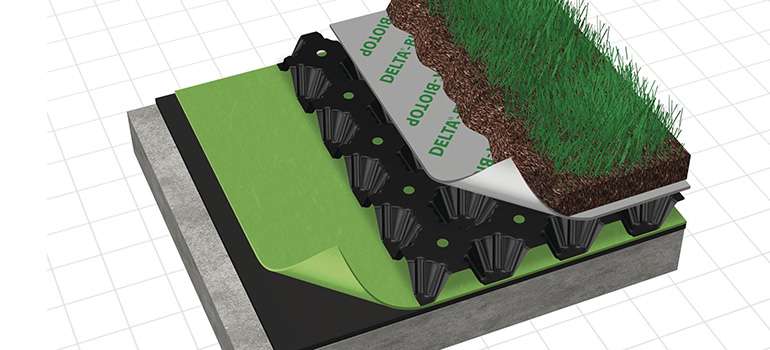

Green roof composition © Cosella Dorken

With a wide array of green roof systems available in the marketplace, it’s increasingly difficult to decide which one to use. My advice? Start by identifying the most important project constraints and risks that stand in the way of success. Once those parameters are identified, you can begin to narrow the list of viable products, and select candidates that are best suited to the application. Among the constraints and risks to be considered are: load limitations of existing structures; exposure to wind; frequency and severity of droughts; and potential for damage by people.

Structural capacity - important elements of commercial green roof design:

AT HSNC, the objective was to use only native plant species in the roof design. To successfully grow native plants, we advocated for a 300mm depth of growing medium to support the root intensive plants that dominate the Alberta prairies. When saturated with water, the weight of this media places considerable additional load on the roof structure. We assisted the structural engineer by providing the anticipated weights of the green roof components, saturated green roof assembly, and plant biomass.
Where the green roof extended over an existing structure, it was determined that the maximum feasible depth of growing medium was 150mm. This restricted the choice of plants in these areas to non-native sedums and a few hardy perennials.

Lethbridge is renowned for high winds. We knew that if we didn’t design to mitigate wind erosion, it would pose a risk. We planned for this by ensuring the roof was well vegetated, that it was protected from erosion during establishment, and that the growing medium we selected was not ultra-light and prone to wind erosion.

The HSNC is located in a ravine. Aside from the riparian forest adjacent to the river, Lethbridge resembles a desert. We knew that long spells of dry weather could harm the green roof, and we addressed this by installing and irrigation system, specifying a moisture retention mat, and maximizing the depth of the growing medium to increase water storage.

Because the green roof would be publicly accessible, we wanted to protect the roof from compaction caused by pedestrian traffic. We collaborated with the architect to include a rooftop patio that incorporated seating, interpretive signage and ample space to walk around and view the green roof from different angles.
This analysis eliminated a large number of systems from consideration, and the final selection was made based on cost, previous experience, local availability and warranty considerations.

Plant for diversity:
I believe plant selection is the single most important factor to ensure the long-term success of a green roof. If the roof fails to establish a healthy community of plants, the system will be prone to costly repairs, higher than anticipated maintenance costs, and an overall sense of disappointment. As a result of the dialog between the client, landscape architect and local plant suppliers, the final species selection for the intensive, native roof at HSNC was comprised of 65 species of perennials and grasses. The success of this collaborative approach was founded on a number of important principles that can be applied to any project:

Get with the program:
Choose plants that support the overall concept and program of the project. Work closely with the client to decide what types of plants they envisioned, and then develop a plant list based on that. This also helps the client foster a sense of ownership with the green roof, because they feel more invested in its design from the outset. For the HSNC we focused on native plants for the intensive green roofs, and combined sedums with a few hardy perennials for the extensive, shallow media roof.

Resilience through family diversity:
For intensive roofs in particular, do your research and select plant species from several different taxonomic families. This not only increases the overall biodiversity of the green roof, but I believe it increases its overall system resilience because plants in different families occupy different niches within a balanced plant community. Plants from different families also attract a wider diversity of insects and birds, resulting in even greater gains in biodiversity.
Never forget that no two green roofs are the same. What worked in Boise, Idaho won’t likely work in Iqaluit, Nunavut. There is a lot of misinformation around green roof plants, with experts often disagreeing on what types of plants are suitable in a given location. Where possible, use local expertise to determine what types of plants to specify.

Innovate when challenged:
Because of the client’s objective to use native plants for HSNC, we were forced to experiment because very few Alberta native plants had been tested on green roofs. Rather than relying on a limited palette of tried and true species, we used existing plant research to identify a wide diversity of plants that seemed well suited for green roofs — drought tolerant, low maintenance, not overly aggressive or invasive, and providing unique or desirable services to the plant community as a whole [i.e. attracts pollinators, prevents wind erosion, fixes nitrogen, etc].

Most of these plants were not commercially available from wholesale nursery suppliers, and we used a local nursery specializing in native plants to contract grow most of the plants we selected. The cost of doing so was competitive, but it did require substantial schedule coordination due to long lead times for contract grown plants.

Conclusion: keys to success of commercial green roofs:

I’ve witnessed numerous commercial living green roof projects fail within the first growing season after completion. This is often the result of a failure to specify clear and measurable establishment and maintenance criteria in the contract specifications. Unfortunately, without these specifications, designers and owners have little recourse in the event that the contractor fails to establish a thriving community of plants on the roof before hand-off to the owner.

Contract specifications:
For HSNC, we ensured the project was successful from the outset by writing stringent specifications for plant establishment and maintenance. In our specification, we provided measurable targets for plant coverage, species diversity, and control of noxious weeds that must be met before the project received substantial completion. Once substantial completion was obtained, we required the contractor to maintain the roof for two growing seasons, and provided detailed requirements for maintenance and monitoring.

Long-term green roof maintenance:
Since the project has been handed over, the owner has enthusiastically assumed the long-term maintenance of the roof, and has been extremely proactive in ensuring its continued success. They perform scheduled maintenance, which includes routine weeding, replanting bare spots and controlling plants that spread too vigorously. As it matures, the roof is becoming more balanced, and the need for routine weeding has been reduced. The plants have well-established root systems, and irrigation is required only during periods of prolonged drought.

In many ways, the Helen Schuler Nature Centre has been an enormous success. From project outset, there were high expectations for the living green roof — it was envisioned to be beautiful, to incorporate native plants, and to educate visitors about the benefits of green roofs and low impact development. Because of these high expectations, it was imperative that the project was well executed in the short and long term.

The most common building material used for roofing is asphalt shingles, and because of their poor durability they may spend only 15 or 20 years on your roof before heading to a landfill. A properly installed green roof has a longer lifespan than asphalt shingles and will absorb and retain a large portion of storm water, which otherwise would end up in sewers needing to be treated.

Storm water some regions is sent directly to waterways, taking with it pesticides as well as pollutants and debris from roads. Even in cities that treat their storm water, systems will occasionally be overloaded by heavy rains to a point where they just can't handle the volume and it ends up being dumped in rivers untreated, despite the efforts and finances invested to keep waterways clean.

Durability and cost of Green Roofs:

A green roof will end up being more expensive to install than most other roofing products, but their durability makes them more affordable in the long run. By the time you have done a second round of asphalt shingles, the cost starts to even out. Expect at least a 50 year lifespan (and likely more) from a properly installed green roof, and if you are installing asphalt shingles, expect to replace them an easy 4 or 5 times over the lifespan of a building.

Now you know about the benefits of a Green Roof, learn more about growing food at home, composting, and other easy lifestyle changes to reduce your environmental footprint in these pages :

Find more about green home construction in the Ecohome Green Building Guide pages - also, learn more about the benefits of a free Ecohome Network Membership here.


Project credits:

Green Roof Designer / Landscape Architect O2 Planning + Design
Architect Group 2 Architects
Structural Engineer BEI Engineering
Mechanical Engineer AME Group
Electrical Engineer Robertson and Associates Engineering
Green Roof Plant Supplier Eastern Slopes Rangeland Seeds
Green Roof Installer Earthlings
Green Roof System Soprema
General Contractor Dawson Wallace
Roofing Contractor Charlton + Hill

Michael Magnan, M. ARCH, BSc, BCSLA, GHRC GRP is Senior Associate/Landscape Architect with 02 Planning + Design.
