The S1600 - affordable modern prefab eco homes for families

Affordable prefab eco homes are a growing green home building trend across the US and Canada, as you may have already seen on our pages or in the press. Economies of scale, the savings in materials and the speed and quality of construction are certainly motivating factors persuading homebuyers to take a fresh look at prefab homes - especially now the high-end sustainable options are also affordable compared to standard code-built homes.

While there are many different green prefab homes to choose from on the market, the Ecohabitation inspired and Architect-designed range of six models in a variety of sizes can be configured from tiny house single bedroom homes to full-sized but eco-friendly 3 bedroom family homes - all with one huge difference compared to "standard" prefab houses - these are designed top to bottom as green eco homes with certified sustainable credentials for materials and performance - which truly sets them apart.

Prefab Canadian-Built eco homes - by design

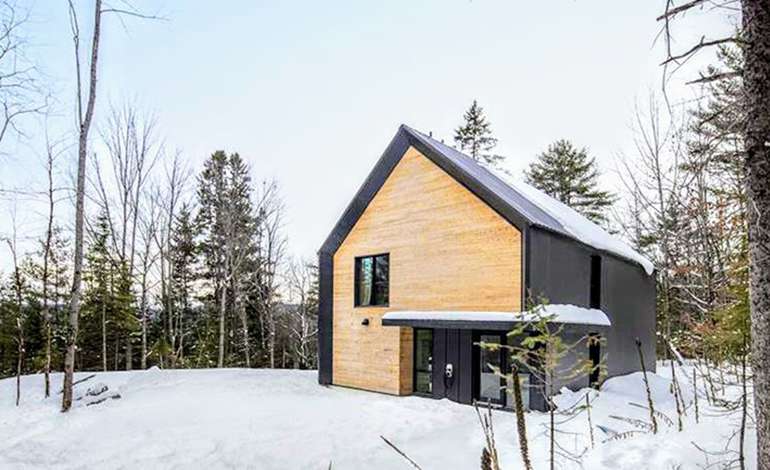

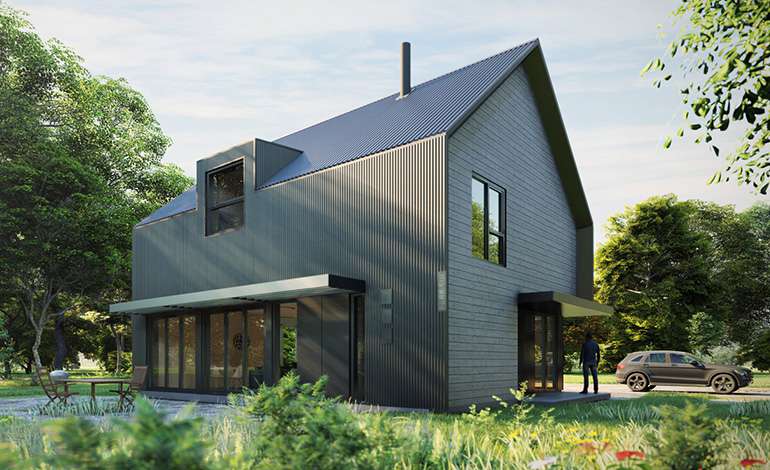

Here we take a closer look at the PARA-SOL Architecture designed S1600 LEED ready modern prefab home, which offers a well-executed 1,600 square feet of living space in a single family home with 3 bedrooms and 1.5 bathrooms. This was the model Ecohome co-founder Emmanuel Cosgrove and the Team chose to build TWICE  - Firstly at the Olympic Stadium Montreal for the Expohabitation exhibition, then secondly as the first prefab test house near Ottawa !

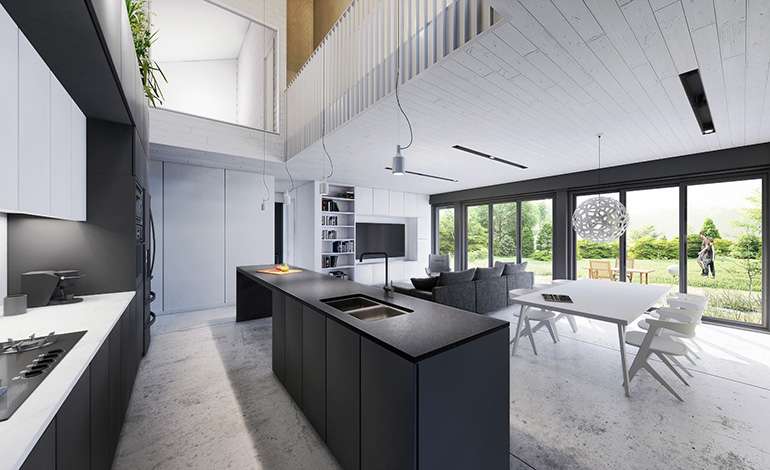

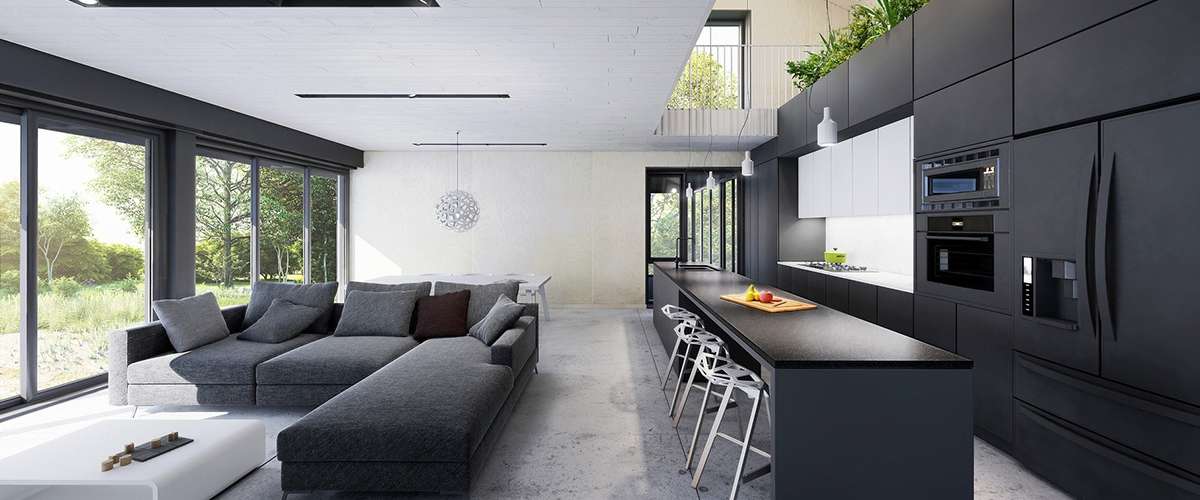

The open concept living area and full wall of south facing windows make this smaller-than-average green home feel bigger than it is. Downstairs the eye is drawn to the distance by the interestingly-designed atrium ceiling with built-in planters over the kitchen area with its extensive island feature, ideal for entertaining.

The beauty is more than skin deep

This prefab home not only exudes a cool modern style, but it also has true eco home substance. Factory-engineered with precision to have such a high level of energy efficiency that it is Passive House and LEED ready, meaning that when other prerequisite conditions are met, the energy performance of the building envelope meets the stringent requirements needed to achieve LEED V4 Platinum or Passive House certification. This also means it could also be specified as one of our Net Zero Energy ready prefab home kits ideal for Quebec, Ontario and North Eastern US States such as New York, Vermont, Maine or New Hampshire.

Built with eco-friendly & non-toxic building materials

The LEED for homes program is a point-driven green home rating system with many performance categories, so not only is the S1600 stylish, well designed and energy-efficient as standard, it also offers an extremely healthy indoor environment filled with non-toxic, sustainable and natural building materials. The wall structure is composed of FSC certified lumber and an exterior wood fiber insulation panel, and the interior of the walls contains dense-packed cellulose insulation finished in the model house with a beautiful VOC & Formaldehyde-free plywood instead of drywall.

Energy-efficient performance

Energy modelling for Quebec based on average weather conditions indicates that the S1600 will consume approximately 9,316 kWh per year in total energy for an average sized family, which includes space heating, water heating, lighting and all interior electrical loads. At Quebec hydro rates of only 7.13 cents /kWh, the entire heating and electrical load would amount to approximately $665.00 CAD per year or just under $42 US per month (check your local utility rates to get a more accurate cost estimate for your location).

So is this a Zero Net Energy prefab home?

Theoretically, it's possible, but we don't generally recommend installing solar PV in Quebec where our model home is built for a couple of reasons - although if buying and installing one of these affordable prefab eco homes in New York, Maine, Vermont or New Hampshire it starts to look more interesting. To explain:

1.  At current rates in March 2020, (although solar pv is regularly falling in cost,) to cover annual electricity use (and therefore make the home Net Zero Energy) you'd be looking to install 10,000 kW of solar panels costing around $25000.00 CAD in Quebec. At $665 CAD a year, that's going to take around 40 years to pay off - by which time they would probably be due for replacement anyway. In New York, Maine or New Hampshire where electricity is around 21 cents US per kWh and a 10 kW solar array would cost around $27000.00 USD so that would take around 14 years to pay off - and leaving 26 years of free clean energy to enjoy !
2. The other reason we probably wouldn't suggest going Net Zero Energy in Quebec is because if the home is kept all electric for heat and light, the electricity used is almost entirely from renewable green sources anyway. In New York though, as an example, only 23 percent of electric is from renewable sources - so we would suggest considering a Net Zero Home with solar PV as a way to lighten the environmental load of homes in the region. It also makes great economic sense if building a home you intend to stay in for a while.

Exceptionally healthy indoor air quality

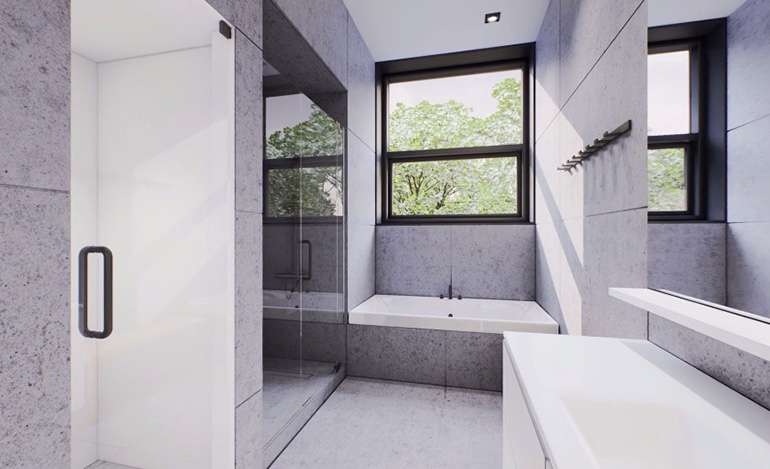

Of the 8 scoring categories of the LEED rating system, among the more important standards is to ensure safe indoor air quality for occupants, which goes hand in hand with sustainable and eco-friendly building materials. This house has a polished concrete main floor and eco-friendly Marmoleum floor covering on the second floor. The Dekton kitchen and bathroom counters are a non-toxic solid surface of ground up glass, porcelain and quartz that is fabricated by being heated to 1000F and compressed under 25,000 tons.

Walls are covered with UV-treated formaldehyde-free plywood panels, which is also used for cabinetry and finishing trim. With a growing rate of asthma and concern about the toxin and VOC levels in new homes in the US and Canada, the S1600 prefab home really scores if you have a young or growing family.

Solar air heated slab on grade radiant floor

So, this is innovative… the floor is heated by circulating warm air through tubes in the concrete. The majority of the required heat load is supplied by solar air heaters, meaning a wall mounted vertical black panel (that doesn't get covered in snow in winter, so it still works on sunny days) where forced air is circulated when the temperature in the panel is high enough, and then injected into the floor where the concrete stores the heat and slowly diffuses it back into the home throughout the day and night. What's not to love about free heat from the sun?!

This was an idea Ecohome had and presented to Legalett, an experienced company who designs and supplies insulated raft slab forms, frost-protected shallow foundation forms, Passive House certified super-insulated slab forming systems and air heated radiant floors to LEED, Passive House or Net Zero standards.

The engineers at Legalett were happy to take on the challenge, and then came back to us with a solar panel design that not only heated the floor in winter, but that included a component so that the panels would generate domestic hot water in the summer months with the added benefit of saving the panels from overheating. The bonus for our test home near Wakefield Quebec - close to Ottawa was that the engineered slab on grade foundation form's design saved money that would otherwise have been spent on soil remediation and frost walls.

Keep in mind that if on a very tight budget this house can also be seated on a conventional thickened edge insulated slab on grade, a full basement for added living space on the same size lot, or even on a crawlspace (our least favorite foundation design). Legalett insulated raft slabs with air heated floors are an option available all across North America, for this house as well as any other design. You can see the video showing the insulated slab forms installation and how the solar heated radiant slab on grade system works here - on the Ecohome Network Youtube channel.

Reducing the Carbon footprint of homes

To combat climate change and rising global temperatures, it is essential that carbon emissions from homes and buildings be reduced. This comes through design features such as choosing a slab-on-grade instead of a basement as they use significantly less concrete, which is very high in GHGs (green house gas emissions), unless you are lucky enough to be able to choose low-carbon concrete, see here for it's growing availability in North America and Canada.

The total embodied carbon footprint of the S1600 kit house was calculated, and the results were very impressive. Being seated on a slab-on-grade partially aided in keeping the carbon footprint low, but also due to the low embodied energy of the materials chosen and extremely energy efficient shell, the total carbon foot print of the S1600 is 1/6th of an equivalent code-built house.

When factoring all the materials needed for construction and considering a 60-year lifespan, the complete lifecycle carbon footprint of the S1600 was calculated to be 10.6 tons of carbon. Compare that to a code-built house with the same size and lifecycle, and that is powered with the same energy source (hydroelectricity), which would have a total carbon footprint of 61 tons. That means a savings of over 50 tons of carbon that will not be released into the atmosphere with this house.

Architects, engineers & home designers, if you don't know about it yet, see the free-to-use EC3 tool, an online carbon calculator to determine the carbon emissions of a home design and easily compare different materials.

LEED & Passive House ready prefabs as eco homes - available now

The S1600 is one of many affordable green prefab home kits presented on Ecohome here, and you can specifically go direct to this model of modern prefab eco homes here to see interior images as well as floorplans and pricing including delivery if you're in Quebec, Ontario and North Eastern US States such as New York, Vermont, Maine or New Hampshire. If an affordable prefab Rancher style eco homes on one level are more suitable, see here for the Abri range.
